Custom Order Product

Eaton

FD80 – Wye-Delta – Closed

The FD80, type EPCT Fire Controller uses a method of connecting the pump motor windings into wye configuration to start, then switching to a delta configuration to run. This reduces the starting current of the motor significantly. Wye-Delta starting is the only method that has a starting torque efficiency of 100%. The FD80 can be programmed for either fully automatic or semi-automatic operation.

Contact for Pricing & More Information

Specs

7” Color Touchscreen

  • 800x480, high resolution display
  • Fast processor reduces input lag
  • Simplified tab system makes navigation and programming easier

USB Port

  • Downloads history, statistics, configuration, diagnostics, and startup files
  • History can log up to 65,000 events
  • Upload configuration to reduce programming time
  • Update firmware

Optional Boards

  • Relay board provides four (4) One Form-C programmable output relays
  • MODBUS board provides output communication via RS422 or RS485
  • Secondary 4-20mA device board provides additional connections for external pressure transducers, temperature sensors, etc.
  • Alarm board provides a supervisory powered alarm outputs

Custom Order Products

Products noted as "Custom Order" require orders be placed with a member of our team. Please contact us for pricing, availability, and shipping information.

Download: EPCT-IOM-MANUAL-2020_1.pdf
Download: fd80-wye-delta-closed.pdf
Two men working on industrial equipment. One is adjusting a red machine, while the other, wearing a cap and holding a device, observes. They are in a well-lit room with various pipes and machinery.

Have a question about one of our products?

Get in touch with us today, we are here to help.

EMAIL CALL

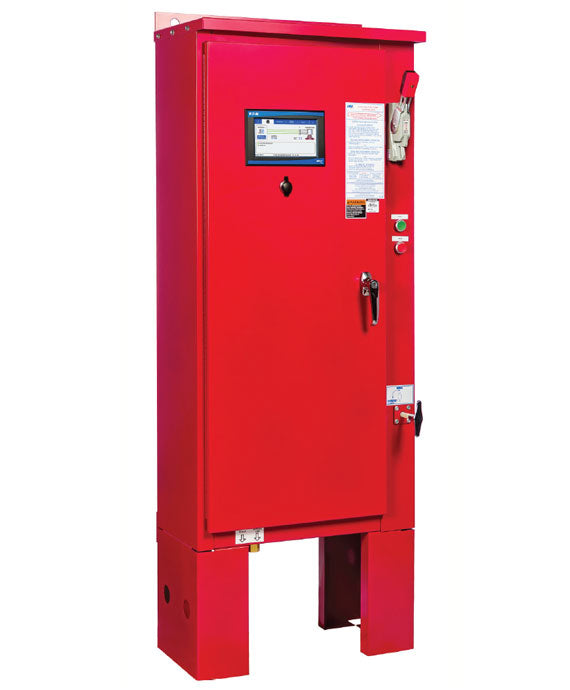

The FD80 – Wye-Delta – Closed by Eaton, a red electrical control cabinet, is securely mounted on a stand and features a digital display along with various buttons. It includes wye-delta starting for optimal torque efficiency and comes with instructional stickers and a lock on its door for added security.
