Eaton

FT90 – Soft Start

The FT90 LMR Soft Start Transfer Switch Controller incorporates a solid-state starter which provides a step-less, smooth current ramp to the motor. This characteristic eliminates current surges and mechanical torque transients. A soft stop feature allows for smooth deceleration of the motor thus eliminating water hammer throughout the cycle. All Eaton FT Series controllers are supplied as Dual Utility controllers and meet FM 1321 / 1323 approvals.

Contact for Pricing & More Information

Specs

7” Color Touchscreen

  • 800x480, high resolution display
  • Fast processor reduces input lag
  • Simplified tab system makes navigation and programming easier

USB Port

  • Downloads history, statistics, configuration, diagnostics, and startup files
  • History can log up to 65,000 events
  • Upload configuration to reduce programming time
  • Update firmware

Optional Boards

  • Relay board provides four (4) One Form-C programmable output relays
  • MODBUS board provides output communication via RS422 or RS485
  • Secondary 4-20mA device board provides additional connections for external pressure transducers, temperature sensors, etc.
  • Alarm board provides a supervisory powered alarm outputs

Custom Order Products

Products noted as "Custom Order" require orders be placed with a member of our team. Please contact us for pricing, availability, and shipping information.

Download: EPCT-IOM-MANUAL-2020_1.pdf
Download: ft90-soft-start.pdf
Two men working on industrial equipment. One is adjusting a red machine, while the other, wearing a cap and holding a device, observes. They are in a well-lit room with various pipes and machinery.

Have a question about one of our products?

Get in touch with us today, we are here to help.

EMAIL CALL

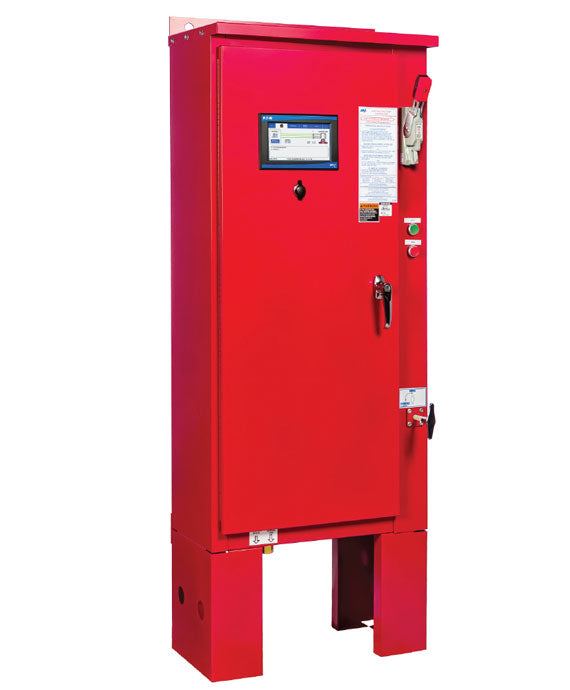

A tall red metal electrical cabinet by Eaton stands on sturdy legs, featuring a small display screen, a handle, and various control buttons and switches on its front panel. It incorporates the FT90 – Soft Start transfer switch controller for smoother operations.
